Coil Spacers

CT1424 Coil Transition

Lower static pressure, longer equipment life.

Coil transition / coil spacer mounted on a furnace

The Coil Transition provides a clean transition between furnace and coil to improve airflow efficiency and reduce system stress. A single spring design reduces static pressure by 0.09″ and adapts to multiple configurations — square, rectangle, and offset — so one part covers many jobs.

Features

  • • Reduces static pressure by 0.09″
  • • Single design fits multiple configurations
  • • Improves furnace longevity
  • • Easier maintenance, fewer warranty issues

Specifications

Static pressure reduction
0.09″
Configurations
Square, rectangle, offset (small↔large)
Material
G90 galvanized steel

Applications

Furnace-to-coil transitionHigh-efficiency retrofits

Order the CT1424 Coil Transition

Bulk and contractor pricing available. We respond within one business day.

Order nowRequest a Quote
Product video

See How the CT1424 Works

Watch the CT1424 installed between the furnace and coil, showing how the transition raises the evaporator coil and creates a cleaner airflow path.

What it is

What Is the CT1424?

The CT1424 is an adjustable sheet metal transition that installs between the furnace and evaporator coil. It raises the coil above the furnace to create a smoother airflow path and reduce restriction at the base of the system.

Why it matters

Fix the Airflow Choke Point

When the coil sits directly on the furnace, airflow is forced through a tight opening. The CT1424 gives the air room to move before it enters the coil.

With CT1424

The raised coil gives air room to transition smoothly before entering the coil.

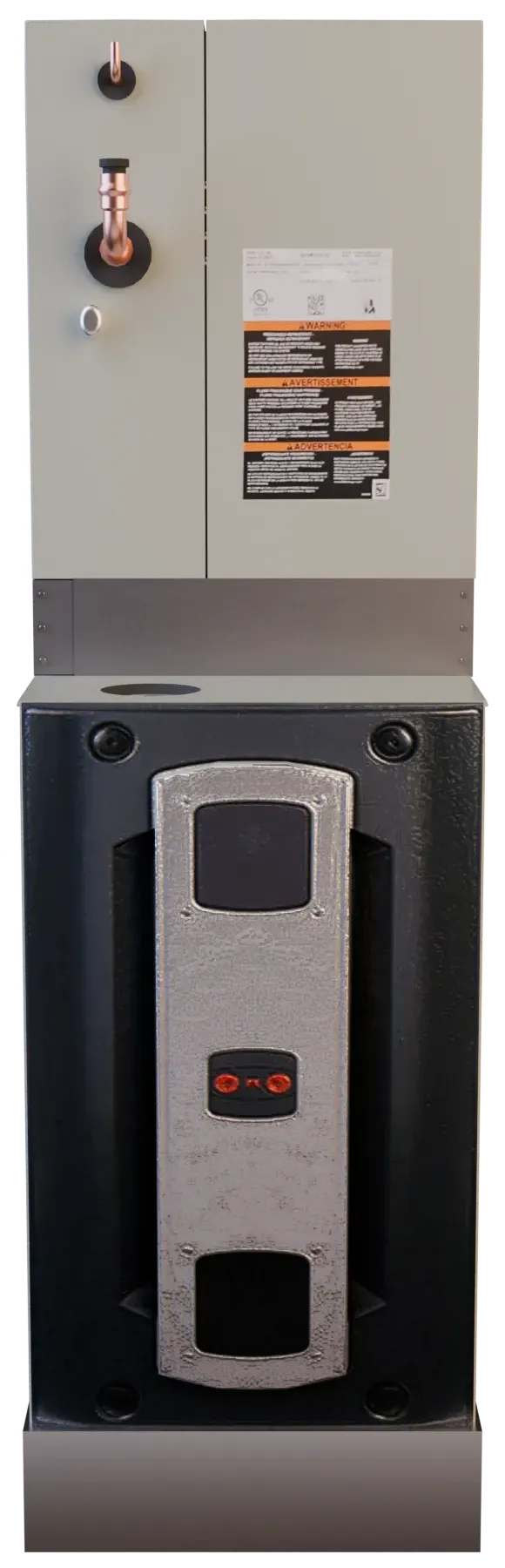

Furnace and coil installed with CT1424
One coil size upHow CT1424 Bridges the Size Difference
Straight UpNo taper · both edges vertical
Aligned CoilCT142414" Furnace
One-Sided TaperLeft side opens · Right edge stays flat
17" CoilFLAT SIDECT142414" Furnace

Active size: 14" Furnace → 17" Coil. The straight-up panel keeps both transition sides vertical. The one-sided taper opens only to the left, while the right side remains flat, vertical, and aligned throughout the continuous animation.

Improves airflow into the coil
Helps reduce static pressure
Reduces turbulence
Creates a cleaner install
Reduces static pressure by 0.1" WC
Added design support

Before and After CT1424

This comparison section reinforces the core product story visually and helps contractors understand the install benefit quickly.

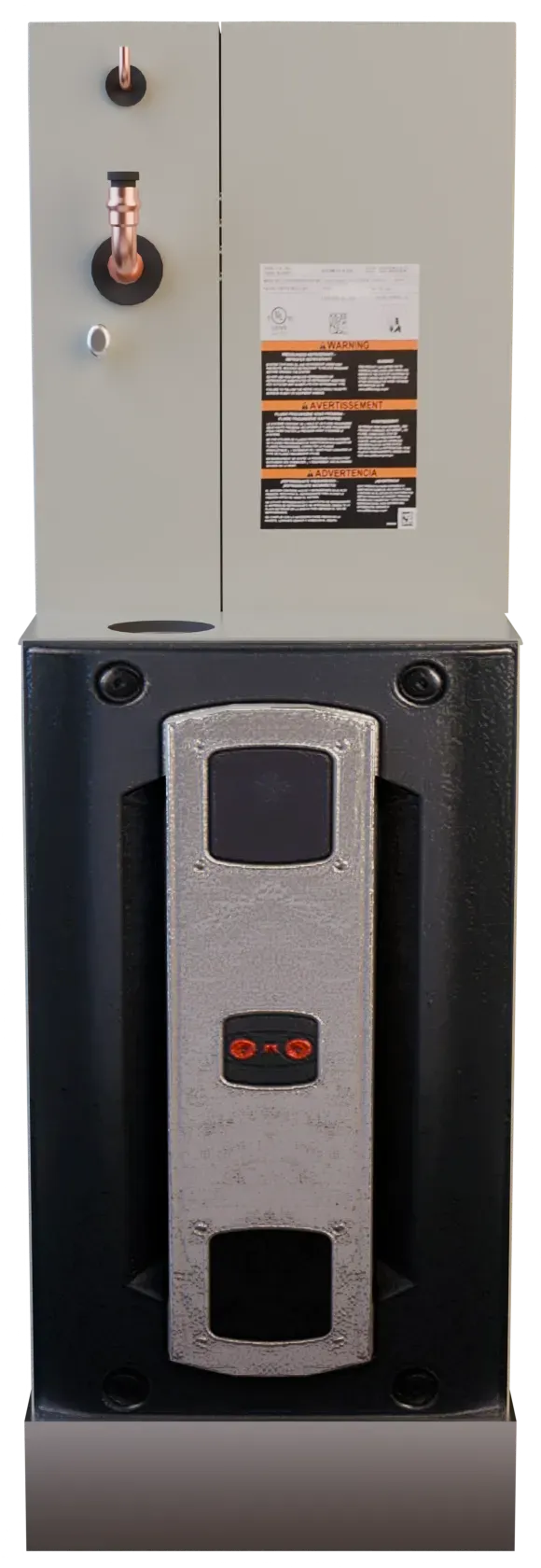

Without CT1424
  • Coil sits directly on furnace
  • Tight airflow opening
  • More turbulence at the base
  • Harder inspection and cleaning
With CT1424
  • Coil is raised above furnace
  • More room for airflow transition
  • Cleaner path into the coil
  • Easier service access later
Product specs

CT1424 Specifications

Product
CT1424 Coil Transition
Application
Furnace-to-coil transition spacer
Fit Range
14"–24" furnace widths
Height
4.5" standard
Material
Galvanized sheet metal
Use
Upflow furnace installations
FAQ

Common Questions

What does the CT1424 do?

It raises the evaporator coil above the furnace and creates a smoother transition for airflow before it enters the coil.

What furnace sizes does it fit?

It fits standard furnace widths from 14" to 24" and adapts one coil size up for rebate and airflow purposes.

What is the standard height?

The standard height is 4.5".

What material is it made from?

The CT1424 is made from galvanized sheet metal.

Who is this product for?

It is designed for HVAC contractors, installers, distributors, and supply houses.

Can I order in bulk?

Yes. Bulk orders are available for contractors, distributors, and supply houses.
